TCH-303W-001 DALI-2 Lighting Control Panel

Glass DALI-2 touch panel, 6 buttons, white

Catalog Number: TCH-303W-001

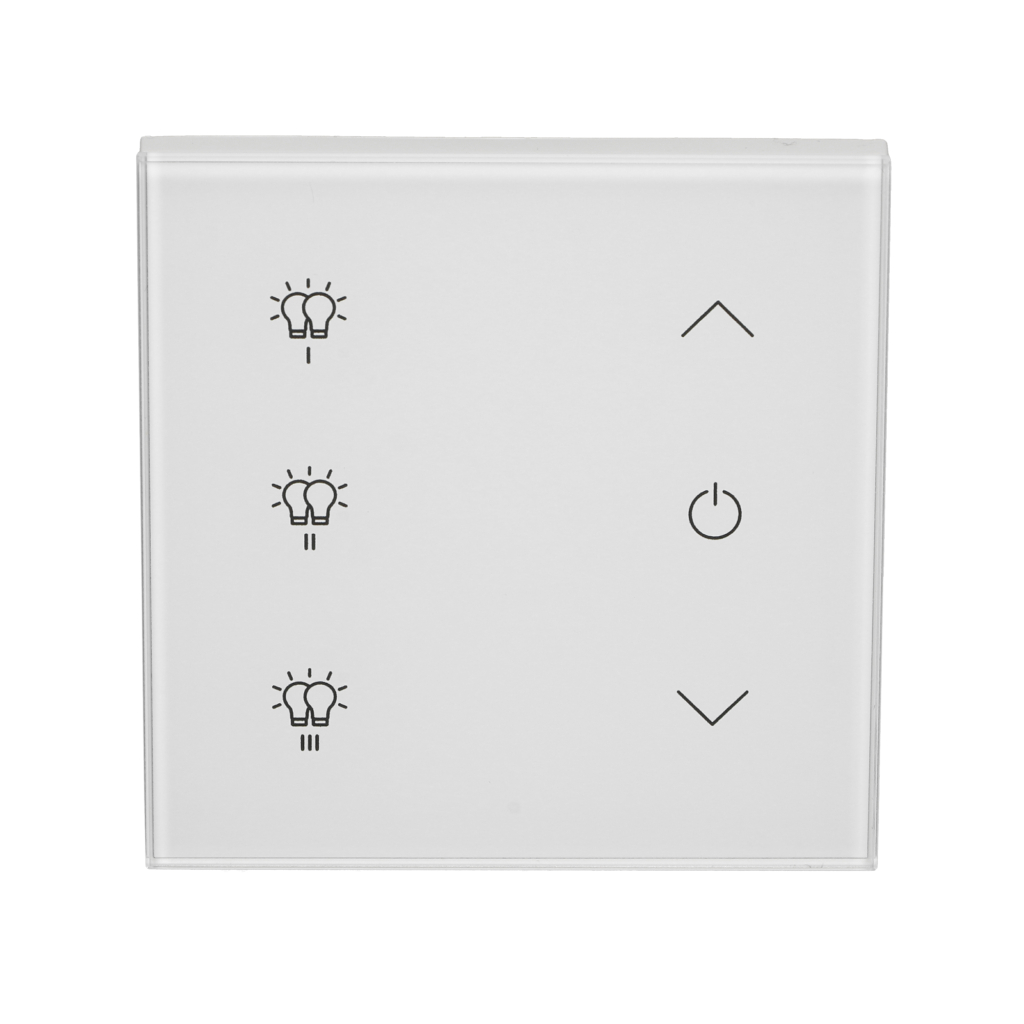

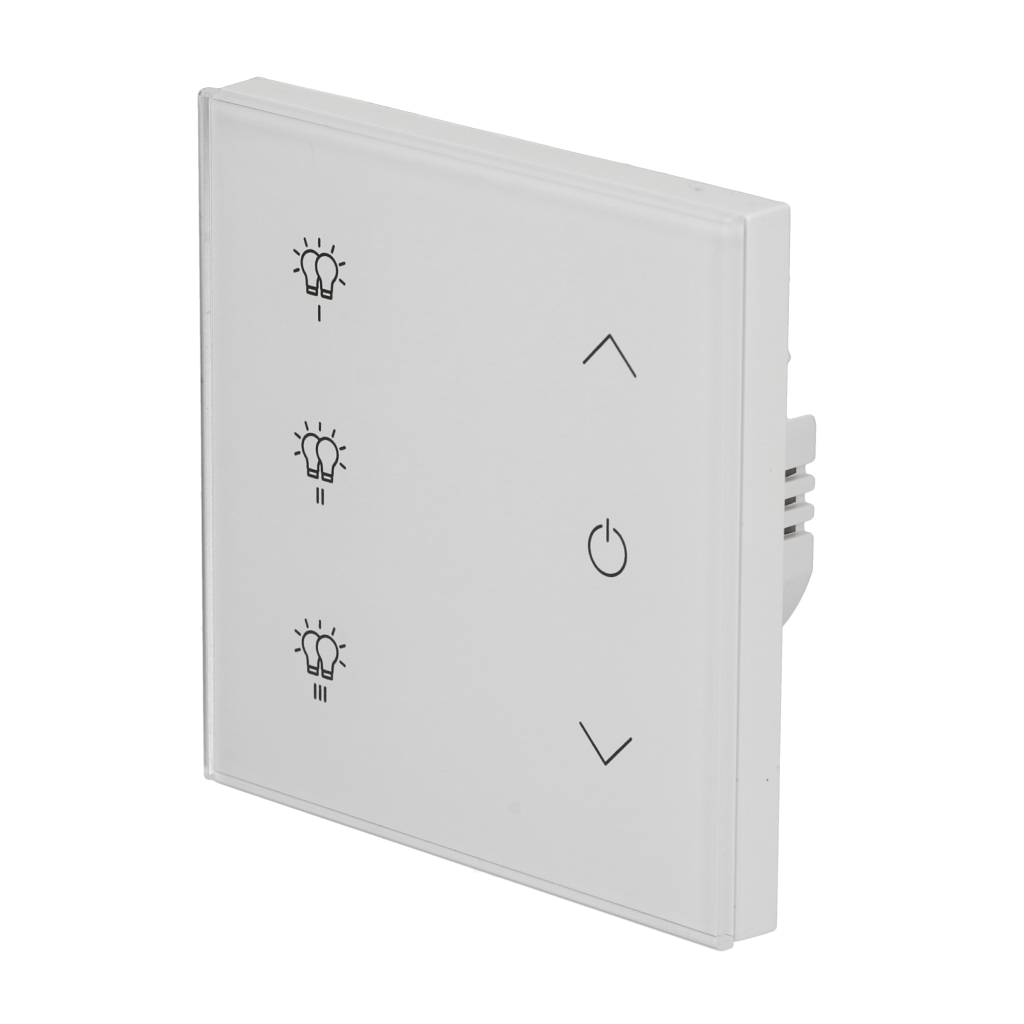

TCH-303W-001 is a modern DALI-2 control panel, combining advanced technology with sophisticated design. Its glass front and intuitively designed icons provide an elegant and universal interface, meeting the expectations of even the most demanding users.

Equipped with six touch buttons, the panel enables precise switching on/off and smooth dimming of lighting. Ideal for controlling three DALI scenes or luminaire groups. Additionally, three LED indicators signal the status of individual groups or the selected scene, significantly enhancing user convenience.

Available in classic white or elegant black. Custom versions, including panel color and icon configuration, are available upon individual request.

Number of buttons

6 buttons

Number of sliders

None

Color

White

Communication

DALI-2

Installation

Ø60 mounting box, Wall

Technical specifications
Power supply 9,5 ÷ 22,5 V DC (via DALI Bus)
Current consumption from DALI Bus 3,5 mA
Communication protocol DALI-2
Number of DALI addresses 1
Number of status indicator LEDs 3 x LED, configurable

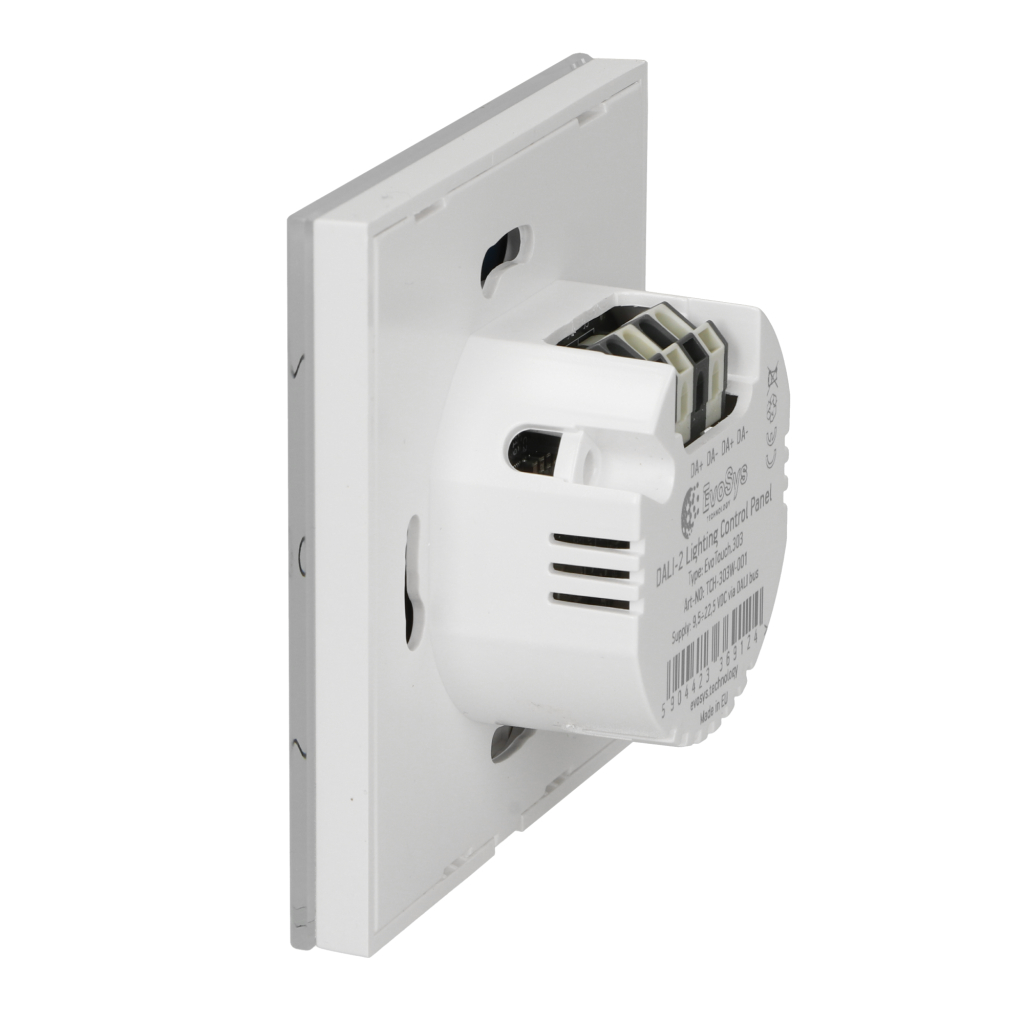

Wiring terminals WAGO spring terminals, wire from 0,25 to 2,5 mm2
Mounting Ø60 mm flush-mount box
Dimensions 86 x 86 x 36,5 [mm]
Color White or black
Materials ABS + PC + Glass
Operating temperature 0 °C to +50 °C
Storage temperature -20 °C to +50 °C
Relative humidity 5 % ÷ 90 %, non-condensing
Weight 140 g
Protection IP 20
Conformity mark CE
Part number / EAN – White colour TCH-303W-001 / 5904423369124
Part number / EAN – Black colour TCH-303B-001 / 5904423369131
