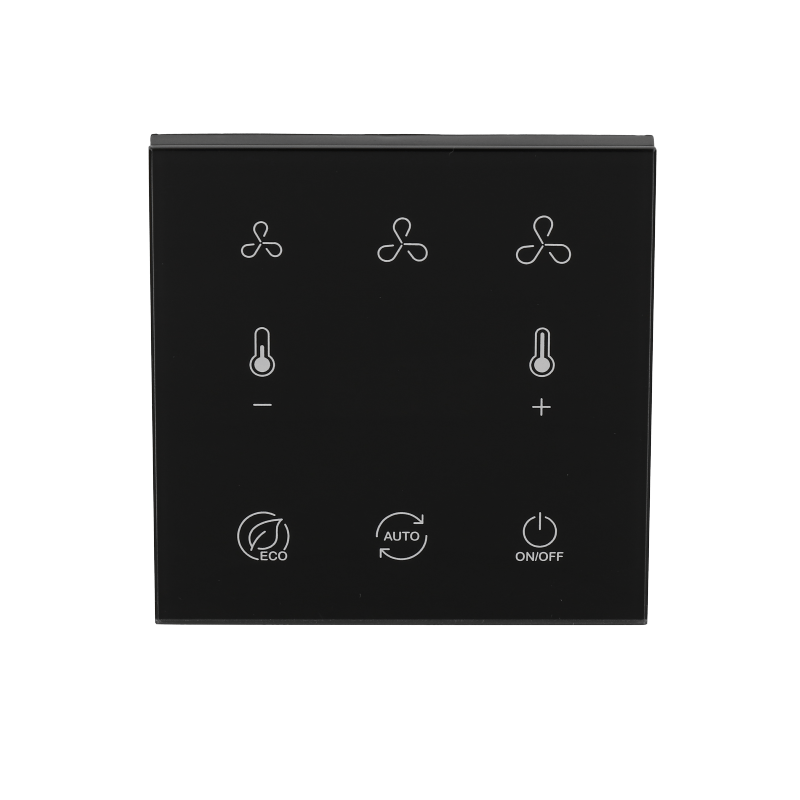

RMT-8FCB-01M Room Control Panel

Glass room controller, Modbus RTU, black

Part number: RMT-8FCB-01M
RMT-8FCB-01M

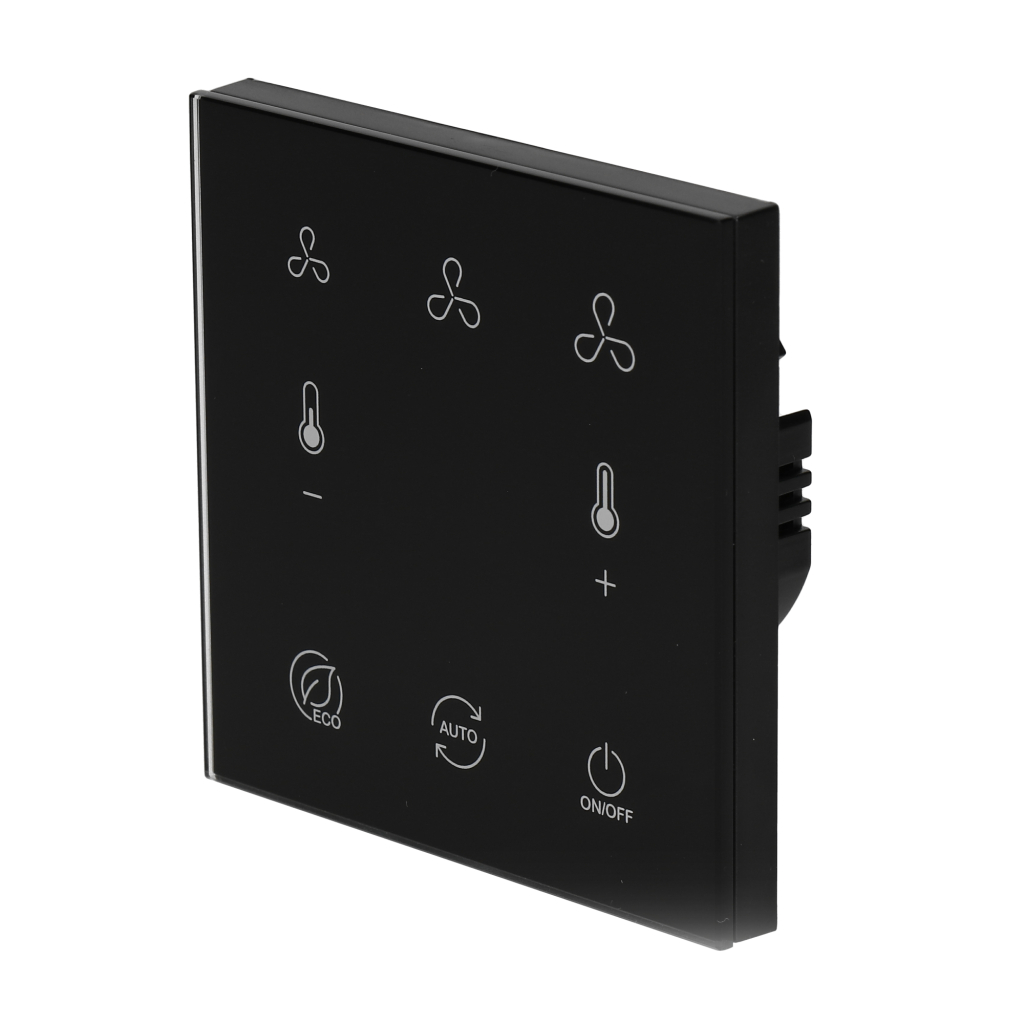

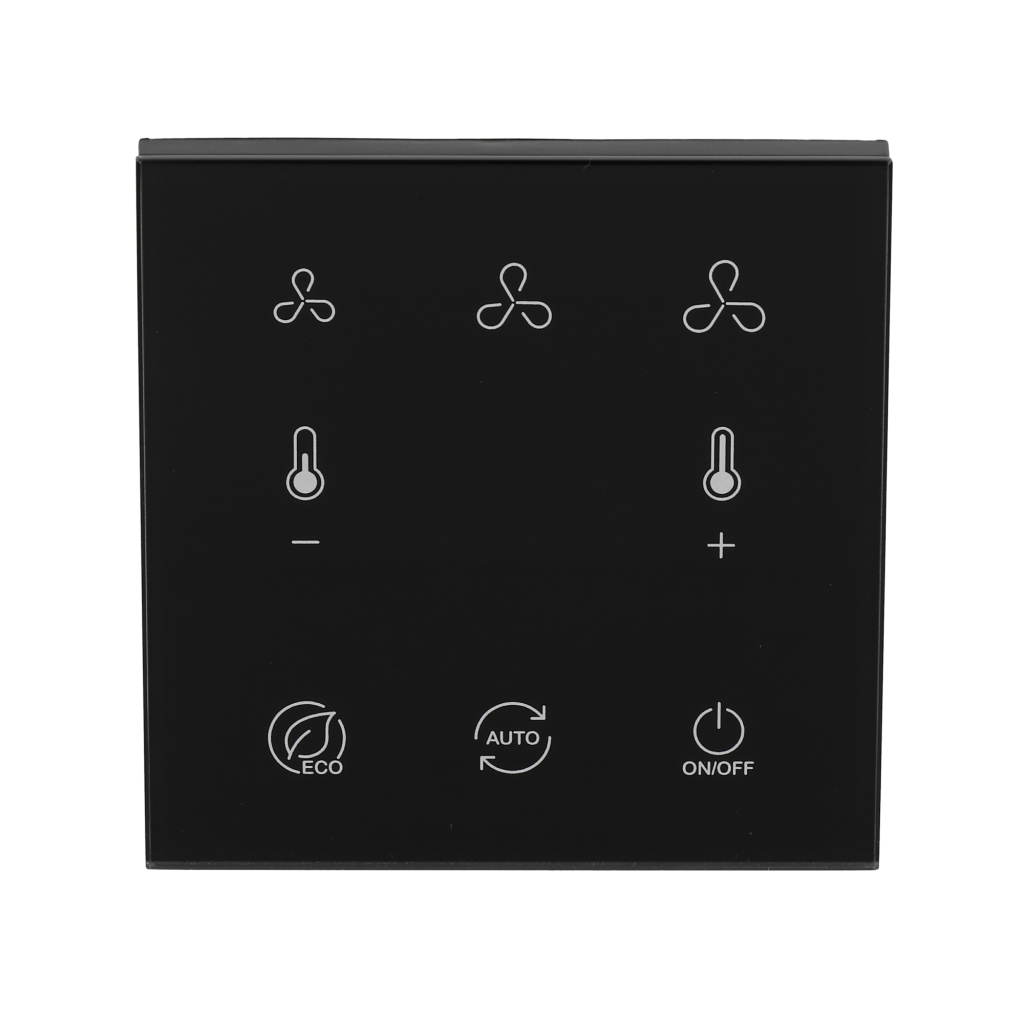

RMT-8FCB-01M is a room control panel with Modbus RTU communication, designed for climate control. Its glass front and intuitively designed icons provide an elegant and universal interface, meeting the expectations of even the most demanding users.

Capacitive touch buttons with LED status indication ensure comfortable temperature and ventilation control. The controller features a built-in temperature sensor, and a stylish display shows the set or current room temperature.

The panel is available in classic white or elegant black. Custom versions, including controller color, icon configuration, and individual printing, are available upon request.

Number of buttons

8 buttons

Color

Black

Communication

Modbus RTU

Measured quantities

Temperature

Installation

Ø60 mounting box, Wall

Display

Yes

Technical specifications
Power supply 8 ÷ 28 V DC
Max. power consumption <2W
Communication protocol Modbus RTU
Interface RS-485 half-duplex
Addressing 1÷247
Baud rate 1200 ÷115200 bit/s
Data bits 8
Stop bit 1 / 2
Parity EVEN / ADD / NONE
Default 247, 9600, 8N1

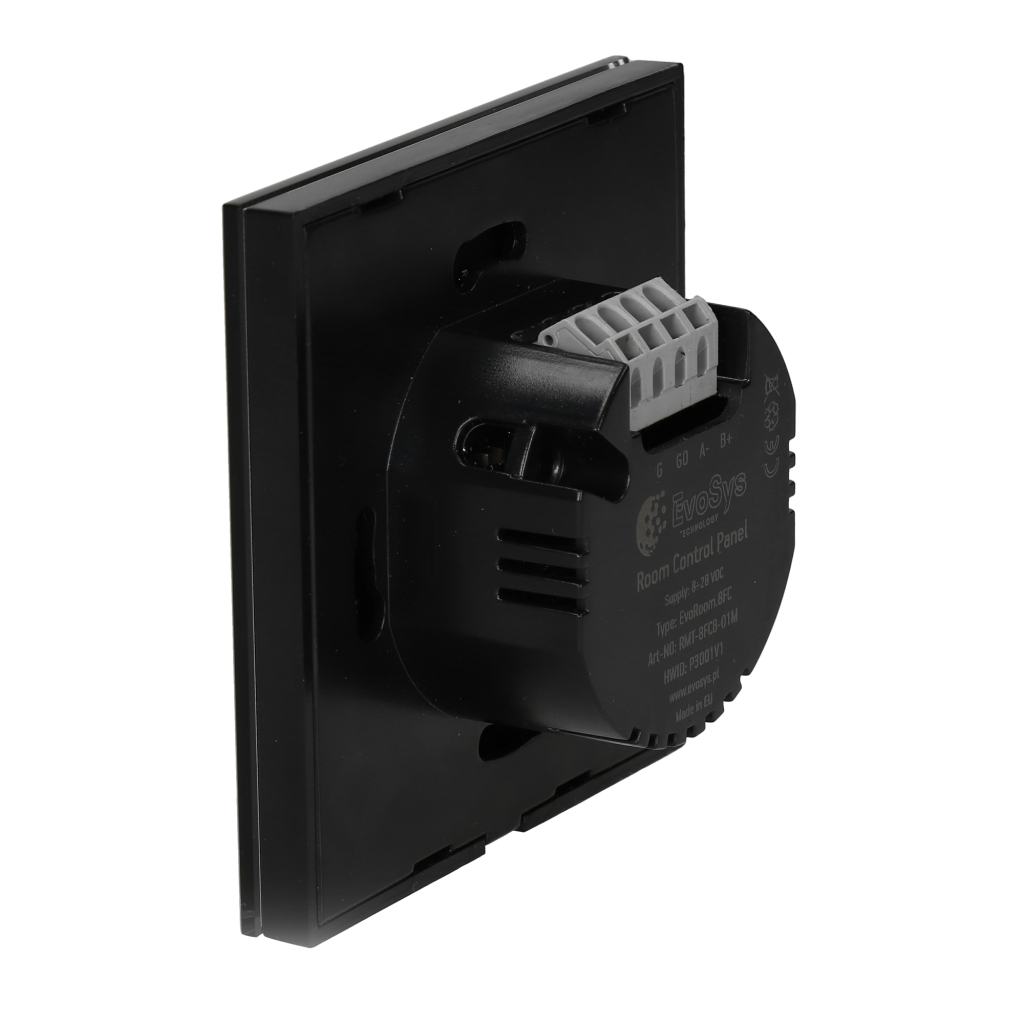

Wiring terminals WAGO spring terminals, wire from 0,25 to 2,5 mm2
Temperature measurement range -40 °C to +125 °C (with 0,1 °C)
Measurement accuracy 1 % / ±0.5 °C
Mounting Ø60 mm flush-mount box
Dimensions 86 x 86 x 36,5 mm
Color White or black
Materials ABS + PC + Glass
Operating temperature 0 °C to +50 °C
Storage temperature -20 °C to +50 °C
Relative humidity 5 % ÷ 90 %, non-condensing
Weight 150 g
Protection IP 20
Additional information Device configuration via Modbus RTU register writing
Conformity mark CE
Part number / EAN – White colour RMT-8FCW-01M / 5904423369445
Part number / EAN – Black colour RMT-8FCB-01M / 5904423369452
Data Sheet PL
KK_RMT-8FCx-01M_PL
Data Sheet EN
KK_RMT-8FCx-01M_EN
Product Manual Room Unit EvoRoom.8FC
Product Manual Room Unit EvoRoom.8FC_RMT-8FCx-01M
